Industrial Electronics
High-performance Capacitors and APFC Panels designed for heavy-duty power factor correction and system stability.

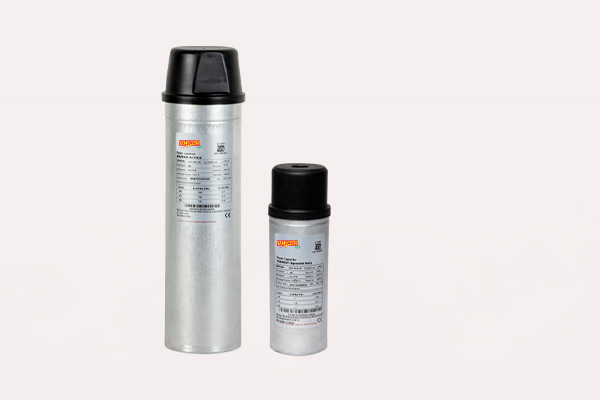

MPP Cylindrical Capacitors
Features a compact cylindrical aluminum can design with multilayer MPP film and flexible PU resin. Built-in explosion-proof pressure sensitive interrupter.
- ✓ Range: 1 to 25 Kvar Single Units
- ✓ Voltage: 400 to 525 Volts AC
- ✓ Application: PFC Panels & Steady Loads

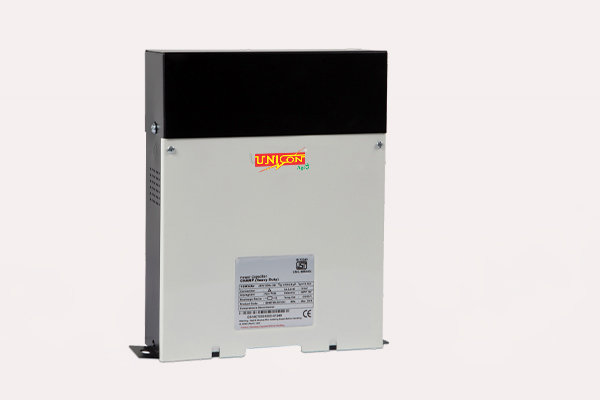

MPP Standard Duty Capacitors
Resin & Oil filled square capacitors using imported base zinc alloy MPP film. Features fire retardant encapsulation and powder-coated containers.
- ✓ Range: 1 to 25 Kvar (400 - 1000 VAC)
- ✓ In-rush Current: 100 times rated current
- ✓ Application: Hospitals, Hotels, Software IT
MPP Heavy Duty Capacitors
Manufactured using high-thickness zinc alloy MPP dielectric to withstand higher over-voltages and overloads. Low energy consumption.
- ✓ Over Voltage: Withstands 1.15 Times
- ✓ In-rush Current: 150 times rated current
- ✓ Application: Chemical, Cement & Sugar Plants

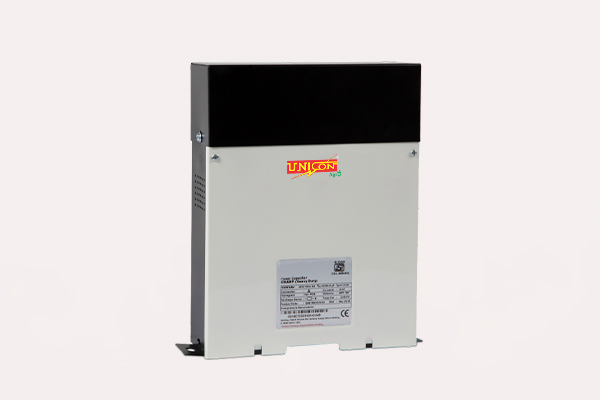

APP Capacitors
Advanced Extended Foil Technology utilizing high purity aluminum foil and hazy BOPP film. Designed for systems with dynamic load fluctuations.
- ✓ Range: 1 to 50 Kvar (400 - 1000 VAC)
- ✓ Lifespan: 5 to 15 Years Approx.
- ✓ Application: Steel, Textile & Arc Furnaces

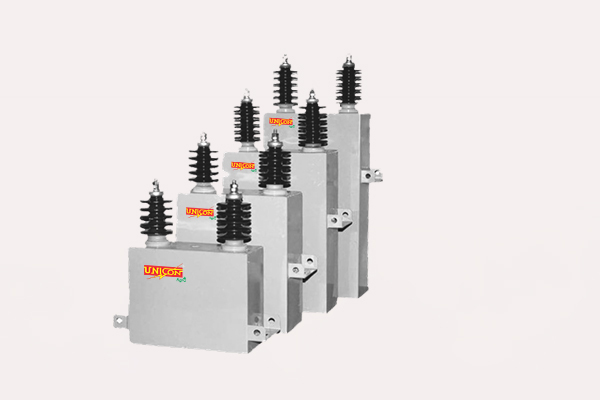

HT Capacitors
Non-PCB impregnated polypropylene dielectric capacitors with internally fitted discharge resistors. Suitable for indoor and outdoor installations.
- ✓ Voltage: 3KV to 22KV
- ✓ Output: 50KVAR, 700KVAR
- ✓ Insulation Level: 28 kv / 75 kv
Automatic Power Factor Correction
Complete APFC panels that avoid leading power factors and penalties while minimizing line and transformer losses.
- ✓ Output Range: 30 - 1000 Kvar
- ✓ Steps: Up to 16 Steps
- ✓ Switching: Contactor / Thyristor

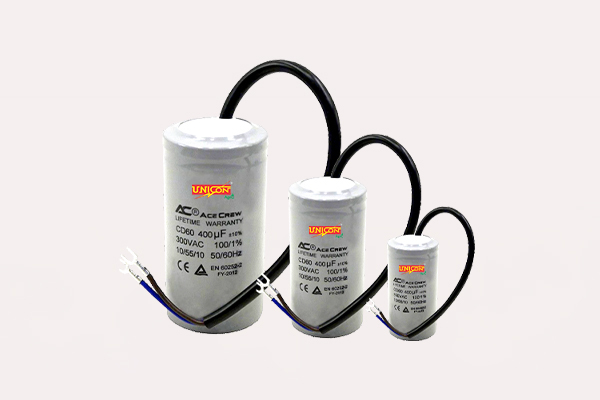

AC Capacitors (MFD)
Flexible PU resin-filled capacitors manufactured using multilayer MPP film. Available in both plastic and aluminum can designs with dual MFD options.
- ✓ Terminals: Wire Type / Tag Type Top
- ✓ Temp Range: -25°C To +85°C
- ✓ Application: Compressors, UPS, Generators & Motors

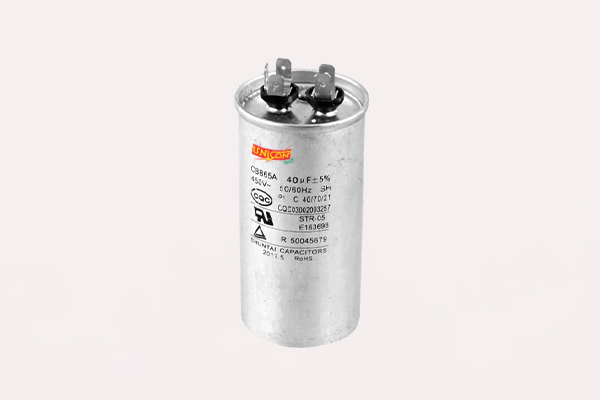

Motor Start Capacitors
Heavy-duty aluminum can capacitors specifically designed to handle high surge voltages for demanding motor starting applications.
- ✓ Duty Cycle: 20 starts/hour (max 3 sec.)
- ✓ Design: Single / Double can models
- ✓ Application: Agri Machinery, Heavy Pumps & HVAC
Technical Specifications
| Specification | AC Capacitors (MFD) | Motor Start Capacitors |
|---|---|---|
| Capacitance Range | 2.00 mfd To 150.00 mfd | 40 mfd To 300 mfd |
| Rated Voltage | 230 To 600 Volts (50 Hz) | 230 Volts RMS (Surge 275-350 RMS) |
| Operating Temp | -25°C To +85°C | -30°C To +70°C |
| Duty Cycle | Continuous | 20 start/hour max of 3 sec. duration |
| Applications | Refrigeration, ACs, Generators, Inverters | Heavy Duty Compressors, Pumps, Agri Machinery |
